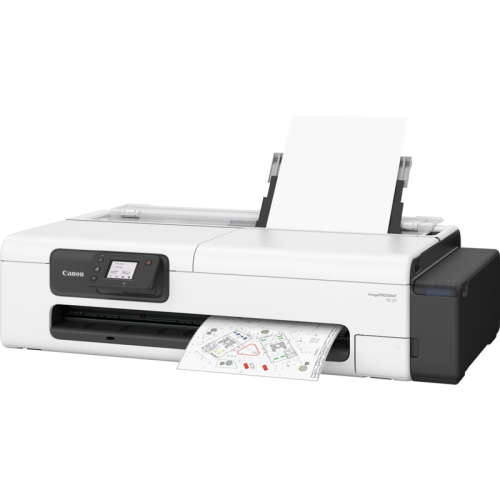

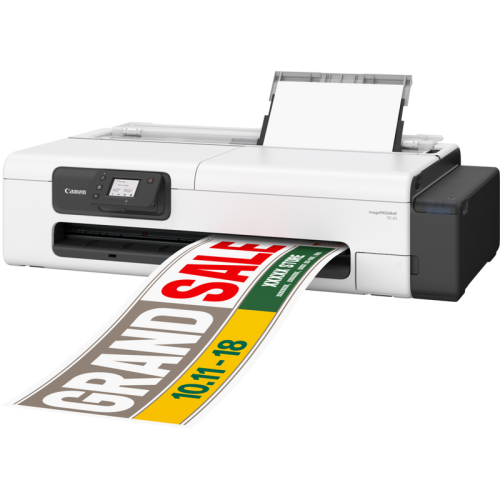

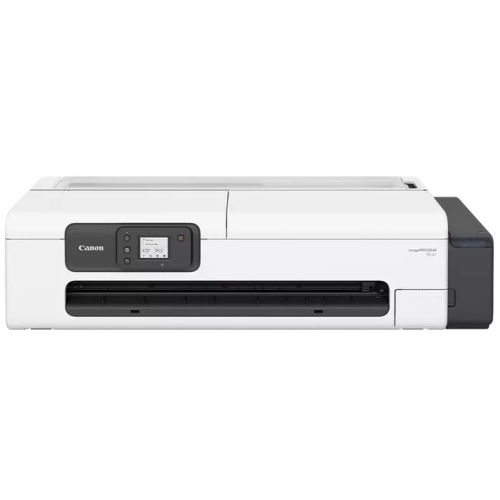

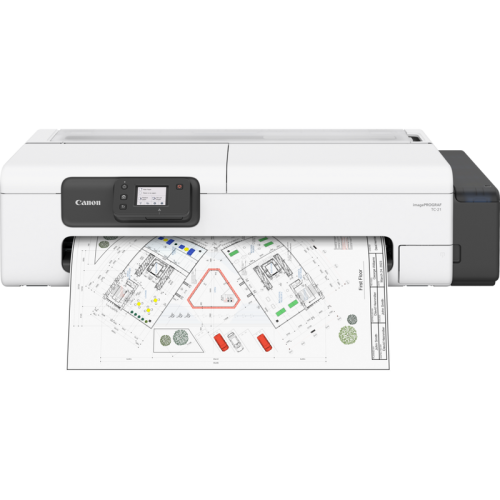

Plotter Canon imagePROGRAF TC-21

Canon TC21. Printer Type 4 Colour 24" Print Technology Canon Pigment ink 4 colours integrated type (4 chips per print head x 1 print head) Print Resolution 2,400 x 1,200 dpi Number of Nozzles Total : 4352 nozzles BK : 1280 nozzles C, M, Y : 1024 nozzles each Line Accuracy ±0.1% or less User adjustments necessary. Printing environment and media must match those used for the adjustments. Nozzle Pitch 1,200 dpi x 2 lines Ink Capacity Bundled Starter Ink: 280ml (70mlx4 for BK, C, M, Y) Sales Ink: 70ml (BK, C, M, Y) Ink Type Pigment inks : 4 colour BK/C/M/Y OS Compatibility 32 Bit: Windows7, Windows 8.1, Windows 10 64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022, 2025 Apple Macintosh: macOS 11.7.10~macOS 14.15 Other Supported Job Submission Protocols Apple AirPrint, Mopria, Chrome OS Printer Languages N/A (no direct print supported) Standard Interfaces USB A Port: N/A USB B Port: Hi-Speed USB Ethernet: IEEE802.3u(100BASE-TX) / IEEE802.3(10BASE-T) Wireless LAN*: IEEE802.11n/IEEE802.11g/IEEE802.11b/IEEE802.11a/ IEEE802.11ac (*Please refer to user manual how to activate/deactivate the wireless LAN) Memory Standard Memory 1GB Expansion slot : No Hard Drive N/A Print Speed CAD Drawing Plain paper (A1, B&W): 0:30 (Standard) Plain Paper (A1, Colour): 1:00 (Standard) Poster Plain Paper (A1) 1:01 (Draft) 1:51 (Standard) Coated Paper (A1) 2:42 (Draft) 4:23 (Standard) Media Handling Media Feed and Output Roll Paper : One Roll, Front-loading, Front Output Cut Sheet : Auto sheet feeder, Face-up, Front side Media Width Roll paper : A3, A2, A2+, A1, B2, B3, 18'', 24'', 17'' Cut sheet: A3, A4, A5, A6, B4, B5, B6, C4, Ledger, Letter, Legal, Foolscap, Executive, ARCH A, Photo (10"x12", 10"x15", 8"X10", 7"X10", 5"x7", 4"x6"(KG), 2L, L), Envelope (Com 10, DL, C5, Monarch), B-Oficio, M-Oficio, user-defined size (width: 89 mm - 297mm, length: 127mm - 1200mm) Media Thickness Roll/Cut : 0.08mm - 0.28mm Minimum Printable Length Roll paper: 203.2mm Cut sheet: 127mm Maximum Printable Length Roll paper : 4m Cut sheet : 1200mm Maximum Media Roll Diameter 110mm Media Core Size Internal diameter of roll core: 2" Margins Recommended Area Roll paper: Top: 5mm, Bottom: 5mm, Side: 5mm (some photo mode: Top: 30mm, Bottom: 30mm) Cut sheet: Top: 5mm, Bottom: 5mm, Side: 5mm Margins Printable Area Roll paper: Top: 5mm, Bottom: 5mm, Side: 5mm (some photo mode: Top: 30mm, Bottom: 30mm) Roll paper (minimal margin print): Top: 0mm, Bottom: 0mm, Side: Approx. 0.5mm Cut sheet: Top: 5mm, Bottom: 5mm, Side: 5mm Media Feed Capacity Roll Paper: One roll Cut Sheet: A4, Letter: 100 sheets (plain paper) A3, B4, Ledger, Legal, 10" x 12", 10" x 15": 50 sheets (plain paper) FS, Foolscap, ARCH A, C4, B-OFICIO, M-OFICIO: 10 sheets (plain paper) Others: 1 sheet Media Take-Up Roll Unit N/A Borderless Printing Width (Roll Only) A4, A3, A2, A1, B4, B3, B2, 17”, 18”, 24” Top/Bottom: Fully borderless; Left/Right: Approx. 0.5mm margin Maximum Number of Delivered Prints Stand Basket (SD-24) / Desktop Basket (BU-06): Standard position - 1 sheet Optional Items Desktop Basket: BU-06 Printer Stand and Basket: SD-24 Consumables User Replaceable Items Ink Tank: PFl-050 (70ml) Print Head: PF-08 Maintenance Cartridge: MC-32
